Standard Types of Pipe and Tube Bends

1/8″ thru 6″ Pipe/Tube

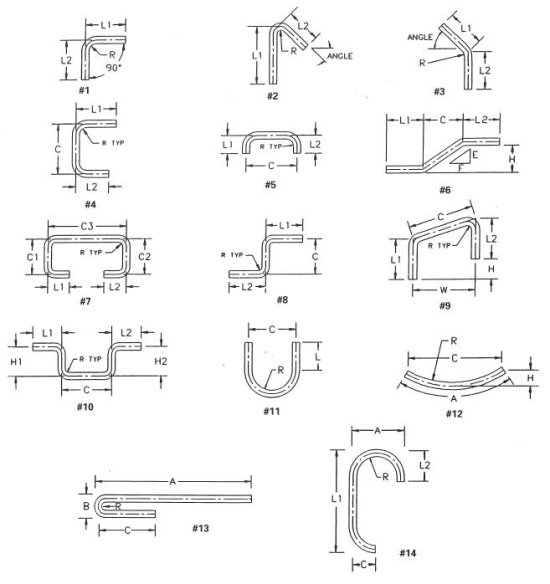

Below are just some of the standard bends we offer. Additional Types of Pipe and Tube Bends are also available. Of course, that Chicago Pipe Bending’s experienced personal can Fabricate Custom Bends according to your specifications.

When ordering or designing pipe bends, try to use center-line radius (R) of at least 3 times the nominal pipe size, smaller radii can be furnished when your requirements so indicate. Tangents (T) can be furnished threaded, beveled or square cut.

Call (773) 379-1918 or E-Mail to Discover What Chicago Pipe Bending Can Do For You!
